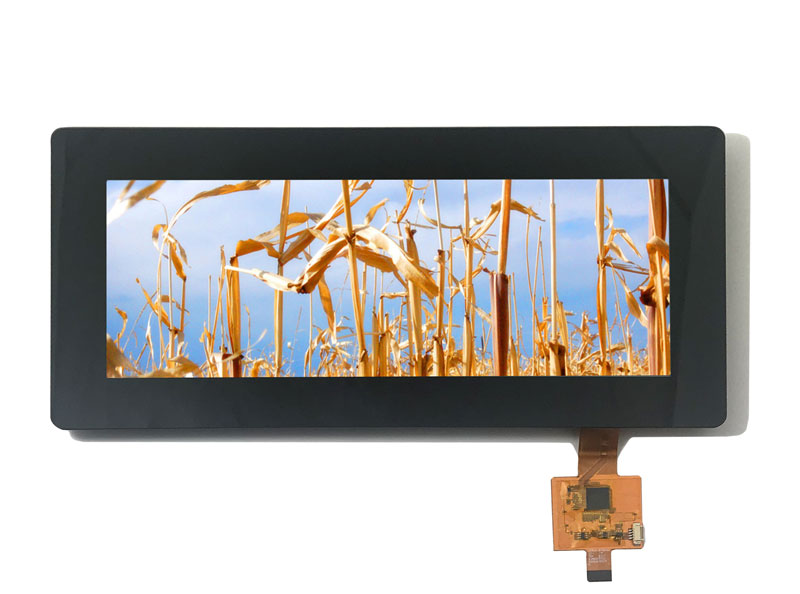

ATM1025L1-CT Digital IPS TFT LCD Panel

ATM1025L1-CT Digital IPS TFT LCD Panel Description

10.3" IPS TFT LCD Display, 1920 X 720, 680 nits RGB-stripe

Module Specifications

Overall Module Size10.3"
Resolution1920 X 720
Brightness (Nits)680
Contrast1000
Back LightLED
Viewing Angle+80/-80
+80/-80
Weight
Operation Temperature (℃)-30~+85
Storage Temperature (℃)-30~+85
InterfaceLVDS
Active Area243.648X91.368mm
Outline Dimension291.65X139.37X12.2mm
Viewing DirectionFree
Bonding Type
Pixel ConfigurationRGB-stripe
