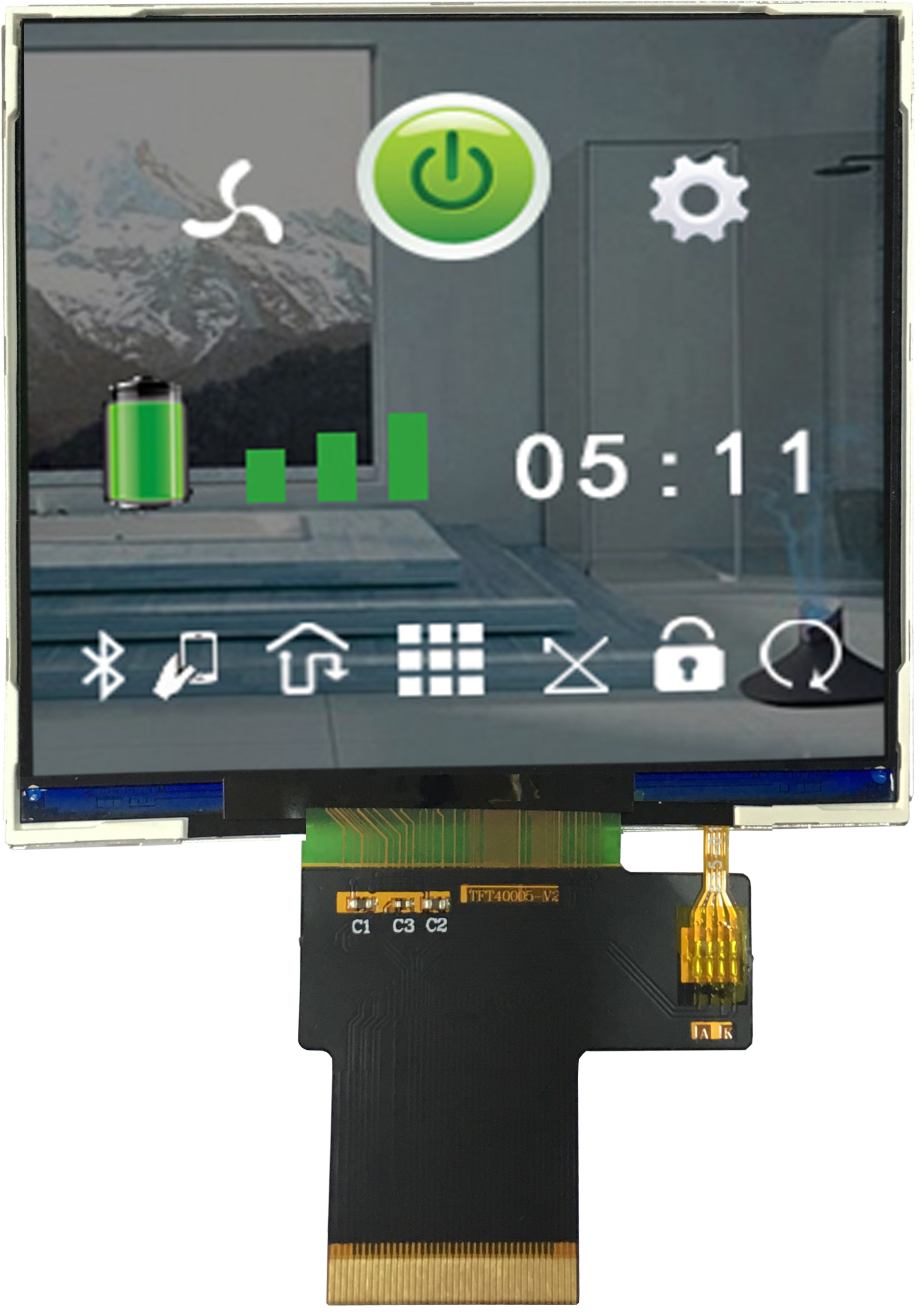

ATM0400D1K Digital IPS TFT LCD Panel

ATM0400D1K Digital IPS TFT LCD Panel Description

4.0" IPS TFT LCD Display, 480 X 480, 1000 nits, RGB, 40 pin

Module Specifications

Overall Module Size4"
Resolution480X480
Brightness (Nits)1000
Contrast800
Back LightLED
Viewing Angle+80/-80
+80/-80
Weight
Operation Temperature (℃)-20~+80
Storage Temperature (℃)-30~+70
InterfaceRGB
Active Area71.86X70.18mm
Outline Dimension77.00X80.00X2.50mm
Viewing DirectionFree
Bonding TypeCOG
Pixel ConfigurationStripe
