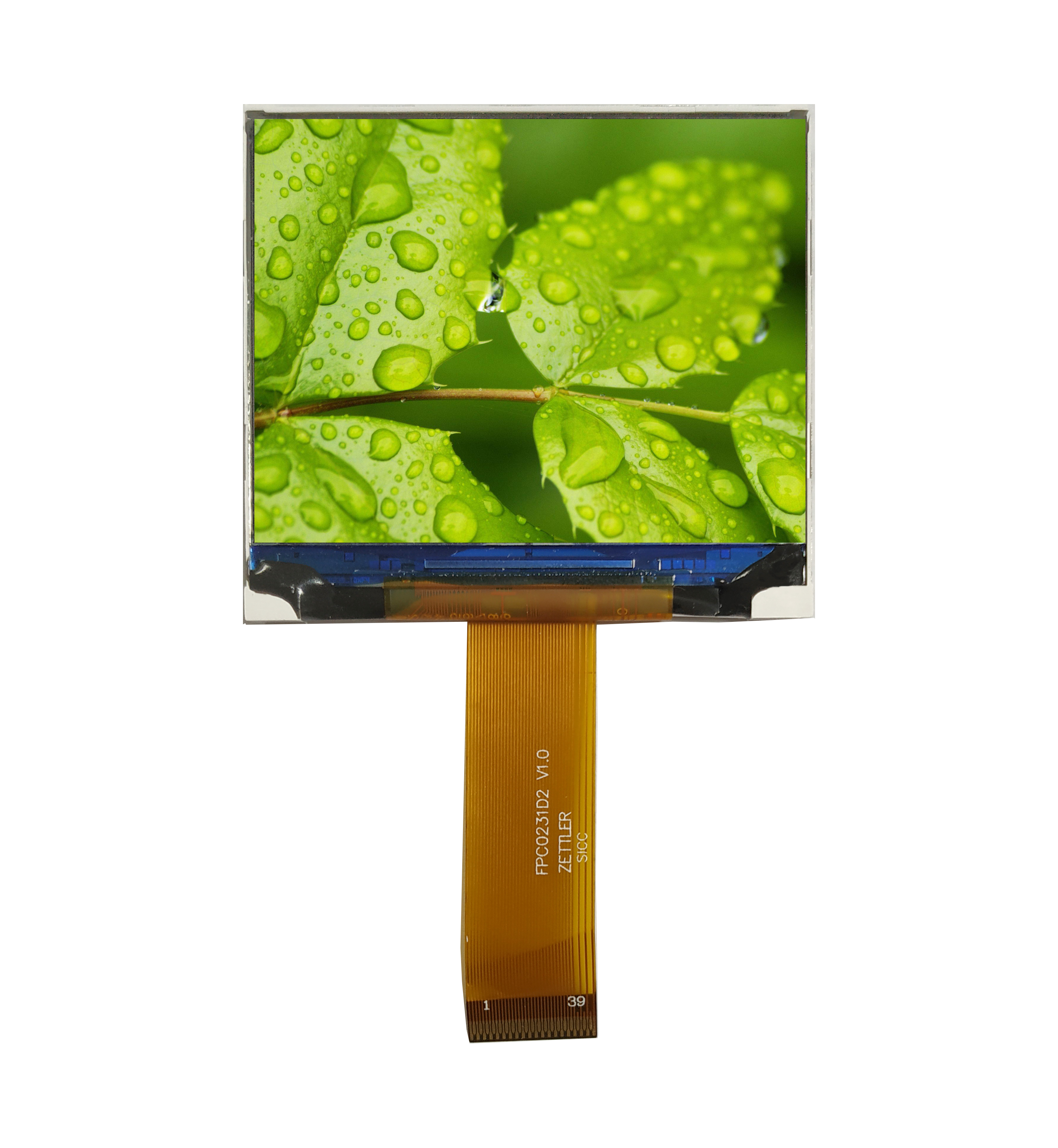

ATM0231D2 Digital IPS TFT LCD Panel

ATM0231D2 Digital IPS TFT LCD Panel Description

2.31" IPS TFT LCD Display, 320 X 240, 400 nits, RGB

Module Specifications

Overall Module Size2.31"
Resolution320 X 240
Brightness (Nits)350
Contrast500
Back LightLED
Viewing Angle+80/-80
+80/-80
Weight9.7g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
Interface18bit RGB
Active Area46.752X35.06 mm
Outline Dimension51X45.8X2.5mm
Viewing DirectionFree
Bonding TypeCOG
Pixel ConfigurationStripe
