ATM1010L21

Quicklinks:

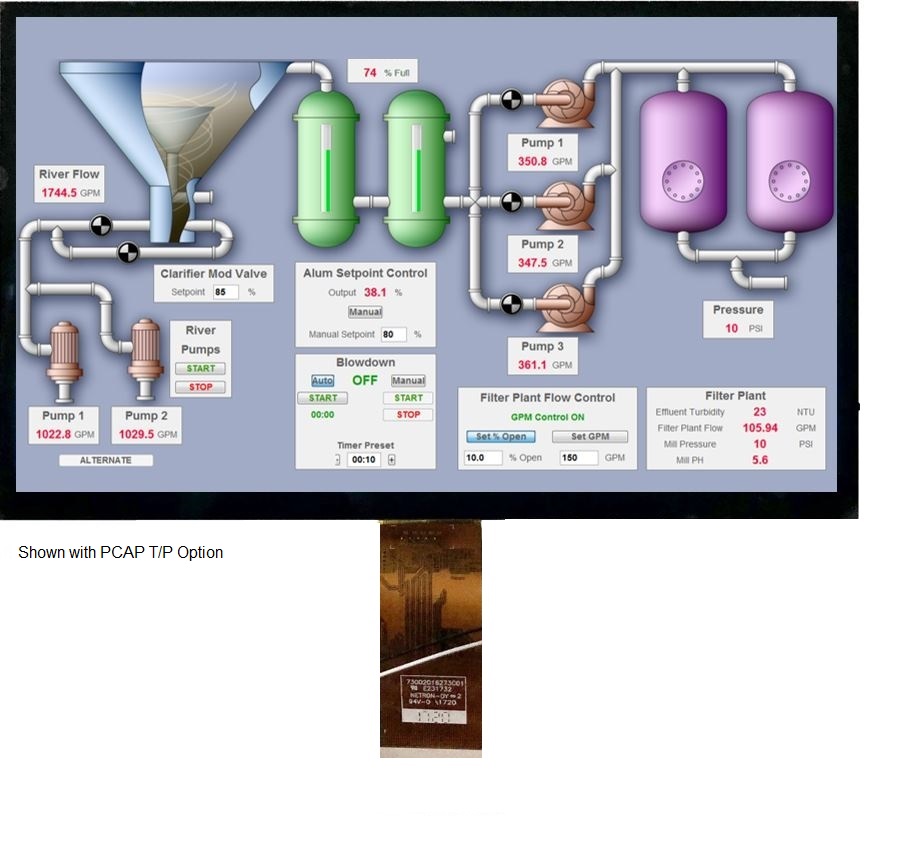

Product Picture:

Features

  • 1024 x RGB x 600
  • 16.7 M Colors
  • ROHS compliance

Module Specifications

Overall Module Size10.1"
Resolution1024XR.G.B.X600
Brightness (Nits)410
Contrast600
Back LightLED
Viewing Angle+70/-70
+70/-50
Weight265 g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceLVDS
Active Area222.72X125.28 mm
Outline Dimension235.00X143.00X4.7 mm
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
