ATM0700D6B-T

Quicklinks:

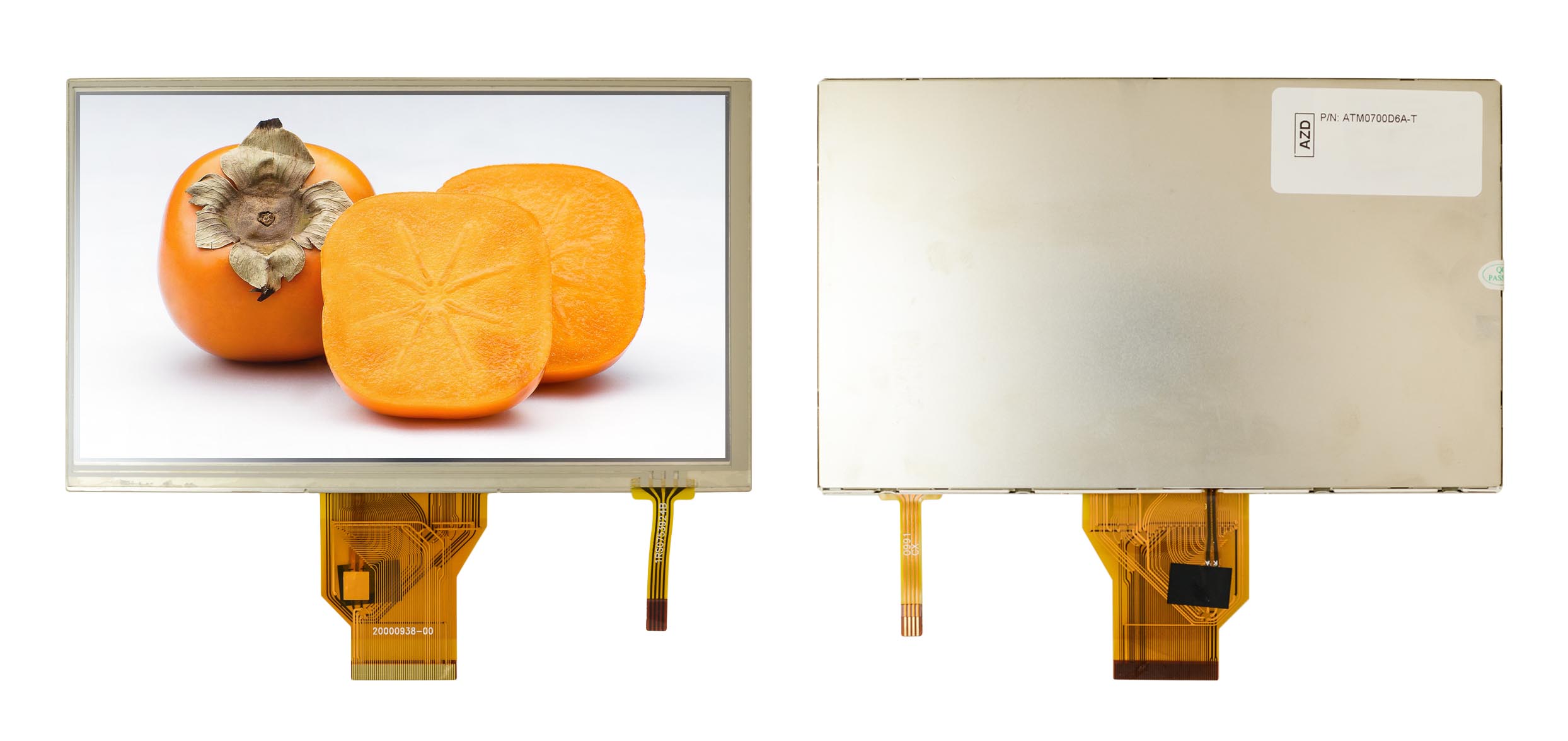

Product Picture:

Features

  • 800 x RGB x 480
  • Wide VGA Resolution
  • LED Backlight Unit
  • Digital RGB interface
  • RoHS Compliant
  • Built-in Resistive Touch panel

Module Specifications

Overall Module Size7"
Resolution800XR.G.B.X480
Brightness (Nits)400
Contrast500
Power Consumption2.2
Back LightLED
Viewing Angle+70/-70
+70/-50
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area154.08X85.92 mm
Outline Dimension164.9X100.0X7.1 mm
Viewing Direction12 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
