ATM0700D6B-CT

Quicklinks:

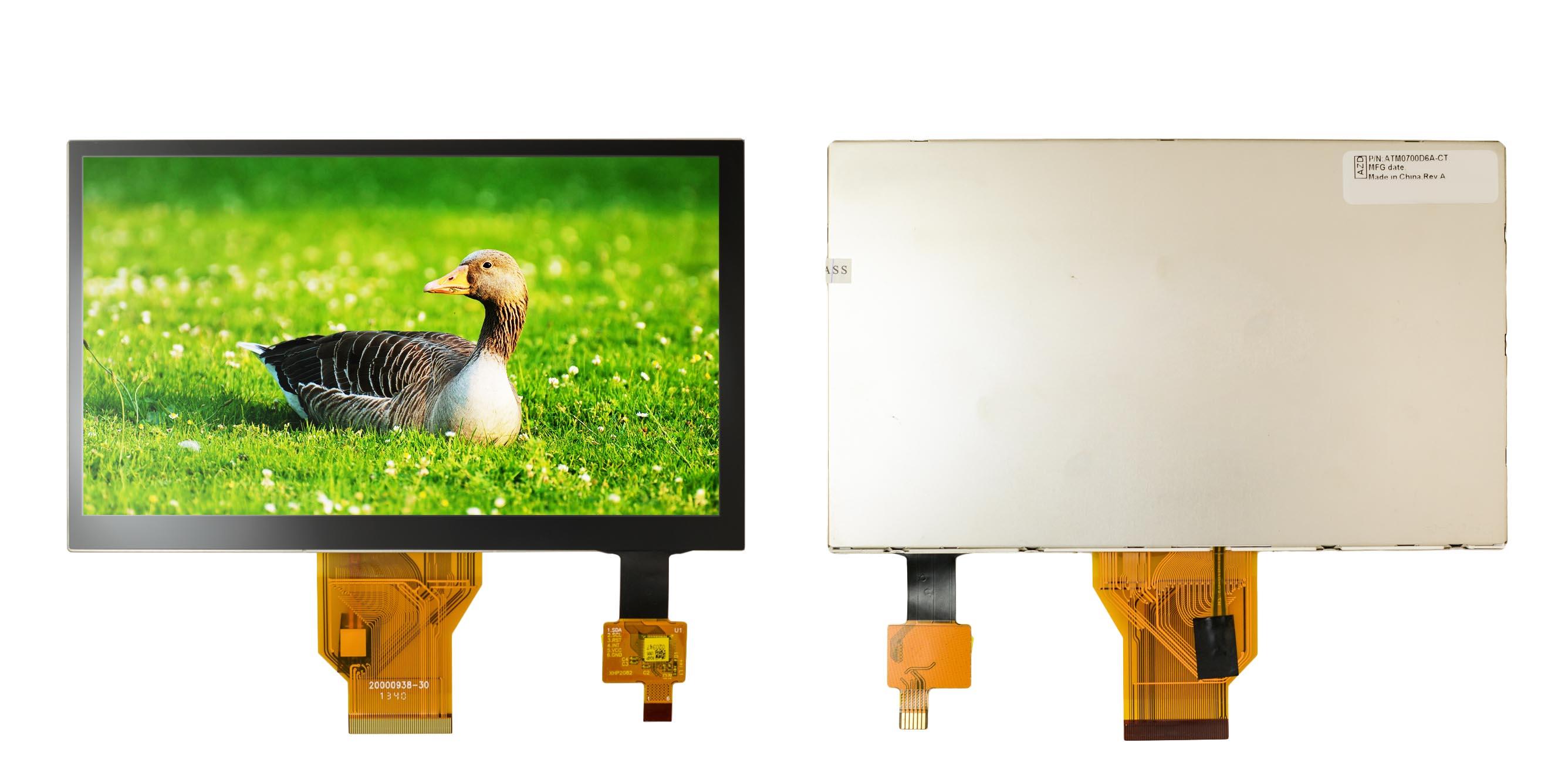

Product Picture:

Features

  • 800 x RGB x 480
  • Built-In P-CAP Touch Panel

Module Specifications

Overall Module Size7"
Resolution800XR.G.B.X480
Brightness (Nits)430
Contrast500
Viewing Angle+70/-70
+70/-50
Weight220g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area154.08X85.92 mm
Outline Dimension164.90X100X7.25 mm
Viewing Direction12 o'clock
