Custom Glass LCD/LED Display Module

Fast. Simple. Custom.

  • Lowest Unit Cost - Custom glass LCD solutions are typically less expensive than monochrome and TFT displays.
  • Many Size Options - Flexible design requirements allow for a wide range of size options for custom glass LCD. Designs can be as small as 1.5" and as large as 10".
  • Very Fast Tooling Process - Concept to Production as fast as 12 weeks - Tooled samples delivered in as little as 4 weeks. Once customer provides drawing to our design team, we can have a proposed design within in 1-2 days.
  1. Proposal Design
  2. Tooling
  3. Production Orders
  4. Total Time
  • ~1 - 2 Days
  • ~4 - 5 Weeks
  • ~6 - 8 Weeks
  • ~10 - 13 Weeks

Color Options

Design Guidelines

Custom Glass LCD Info Minimum Maximum
Size No less than 1.5" No more than 10"
Width of Glass No less than 15mm No more than 160mm
Large Glass Height No less than 15mm No more than 160mm
Small Glass Height No less than 14mm No more than 150mm
Viewing Area No less than 1.4" No more than 9.8"
First Contact PIN and Zebra
Glass Thickness 1.7mm(seldom use), 2.0mm(common), 2.8mm(common)
Contact Pitch(Metal PIN) Pitch=1.5mm, Pitch=1.8mm, Pitch=2.0mm, Pitch=2.54mm
Contact Pitch(Zebra) Pitch: more than 0.6mm No upper limit

Follow these steps:

  1. Glass Type

    Choose a glass type based off your viewing needs:

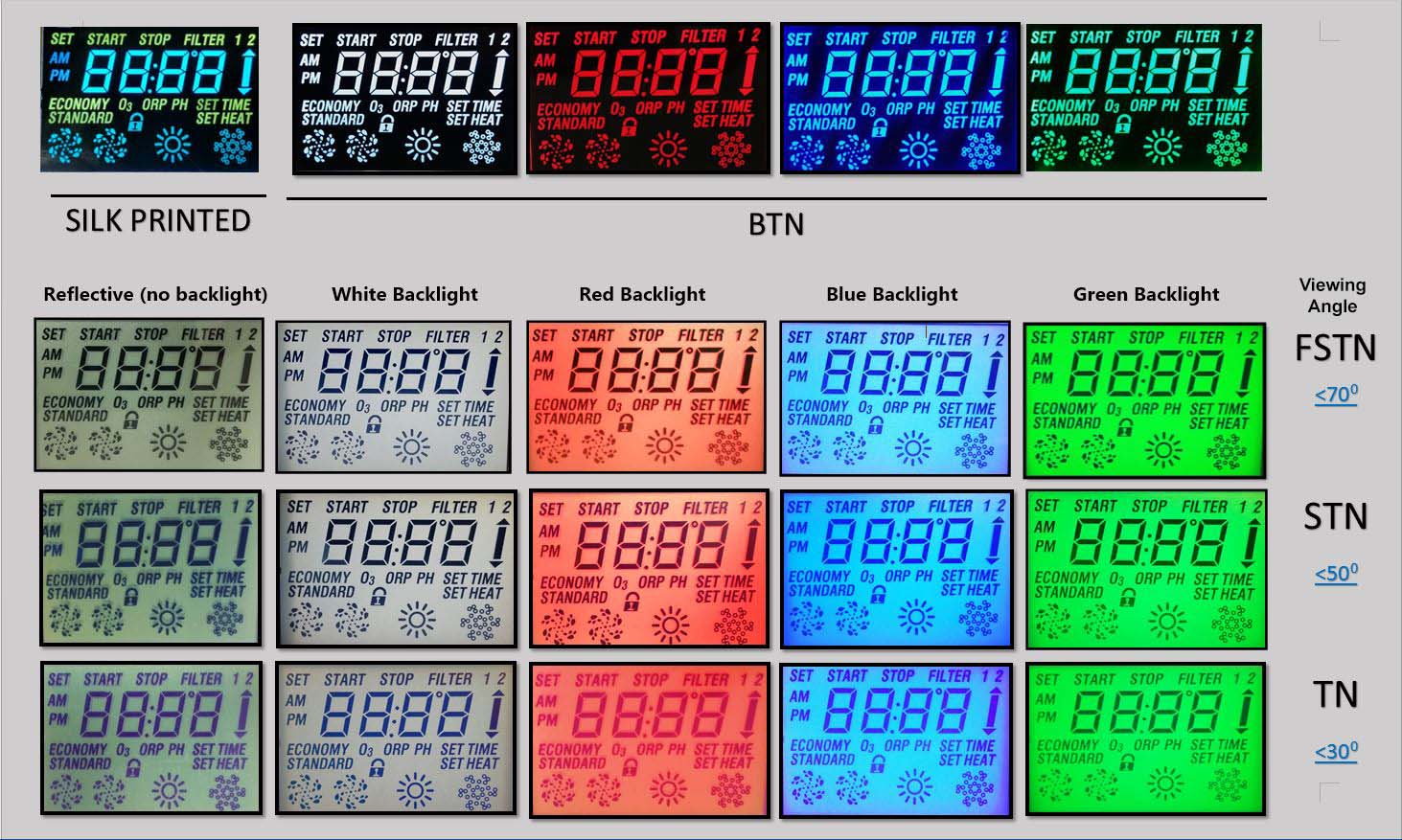

    Different Glass structure comes with different viewing angles. Please refer to the image chart (right) to see unedited pictures of the actual glass types.

    • TN : Lowest cost, low viewing angle (30)
    • STN : Most common, 50 degree viewing angle
    • FSTN : Great contrast, very wide viewing angle (70)

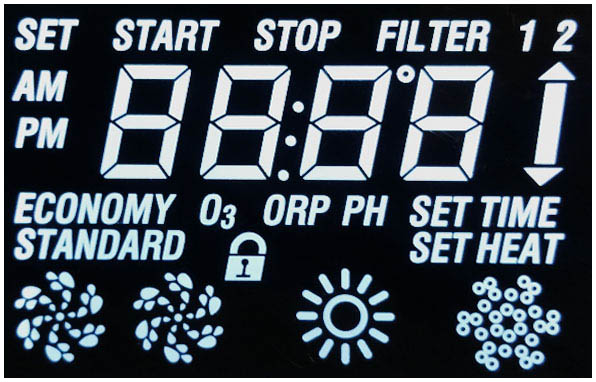

    • BTN/SILK SCREEN : Best Contrast, very wide viewing angle (80)

  2. Interface

    • Pins

      Standard Pins

      AZ Displays Custom Glass LCD Pins

      Elastomeric (Zebra Strips)

      AZ Displays Custom Glass LCD Zebra Strip Elastomeric

    • Configuration

      Integration Configuration

  3. LED Backlight Color Options

    All backlights come with a diffuser film to evenly disperse the light from the LED’s to eliminate “hot spots”.

    White

    Blue

    Red

    Green

    Yellow

    No Backlight

  4. Upload Your Design

    We will be in touch with you as soon as possible!
