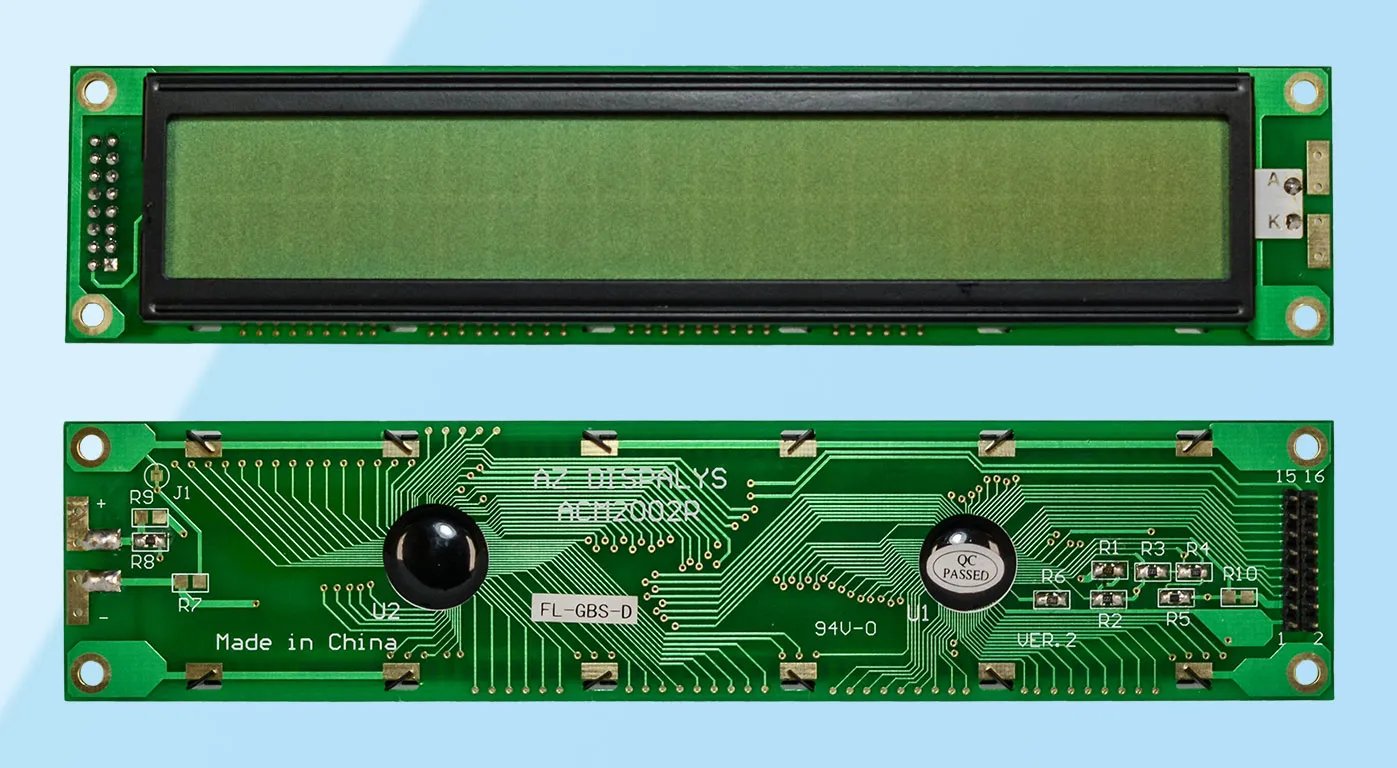

Character modules: ACM2002R-FL-GTW
Datasheet
View Part Drawing
Features:
- 20 Characters x 2 Lines
- 5x7 Dot Matrix Character + Cursor
- HD44780 Equivalent LCD Controller/Driver Built-In
- 4-bit or 8-bit MPU Interface
| Product Specifics | |
|---|---|
| Series | ACM2002R |
| Format | 20 x 2 |
| Viewing Area (mm) | 149.0 x 23.0 |
| Supply Voltage | 5.0V/3.3V |
| Outline Dimensions (mm) | 180.0X40.0X9.5mm |
| Polarizer Type | Transflective Positive |
| Backlight Type | LED |
| Backlight Color | Yellow/Green |
| Fluid Type | Grey Mode STN |
Nomenclature Diagram
