AGM3224D Series

Quicklinks:







Features

  • 320 x 240 pixel format
  • CFL backlight available with power harness
  • White LED backlight option
  • Includes FFC interface connector
  • Touch Panel

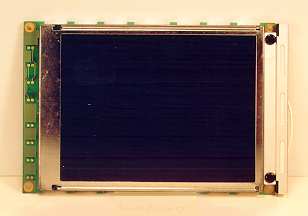

Product Picture: AGM3224D


Module Specifications and Part Numbering Methodology

Overall Module Size167.1 (W) x 109.0 (H) x 11.0 mm (D) for CCFL backlight version
Viewing Area122.0 (W) x 92.0 mm (H)
Dot Size0.33 (W) x 0.33 mm (H)
Dot Pitch0.36 (W) x 0.36 mm (H)
Duty1/240

Monochrome Part Numbering System:

AZ DISPLAYS MONOCHROME PART NUMBERING SYSTEM
