ATM1040L3A

Quicklinks:

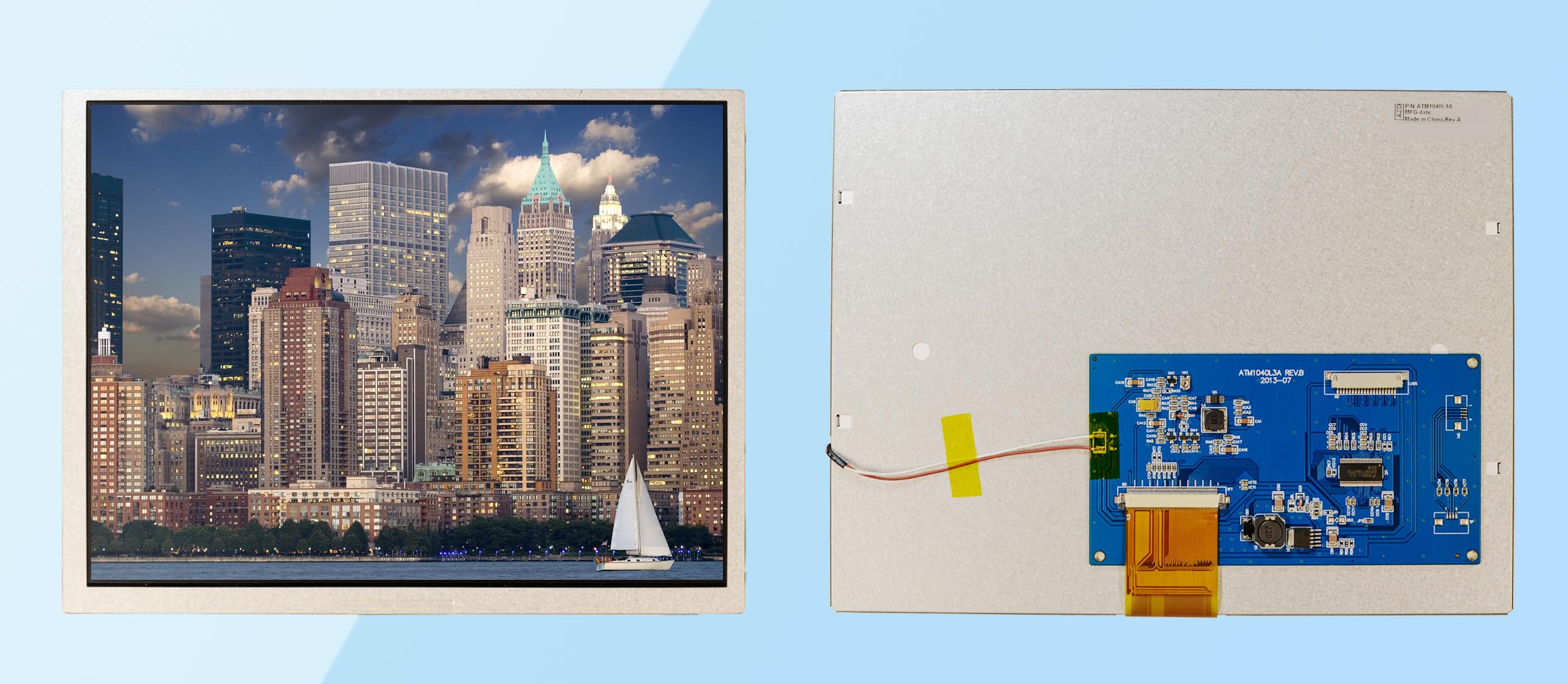

Product Picture:

Features

  • 800 x RGB x 600
  • LED Backlight
  • ROHS compliant
  • LVDS interface
  • 16.7M Colors

Module Specifications

Overall Module Size10.4"
Resolution800XR.G.B.X600
Brightness (Nits)250
Contrast500
Back LightLED
Viewing Angle+70/-70
+50/-60
Weight390 g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceLVDS
Active Area211.2X158.4
Outline Dimension228.4X175.4X12.0
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
