ATM0700L6J-CT

Quicklinks:

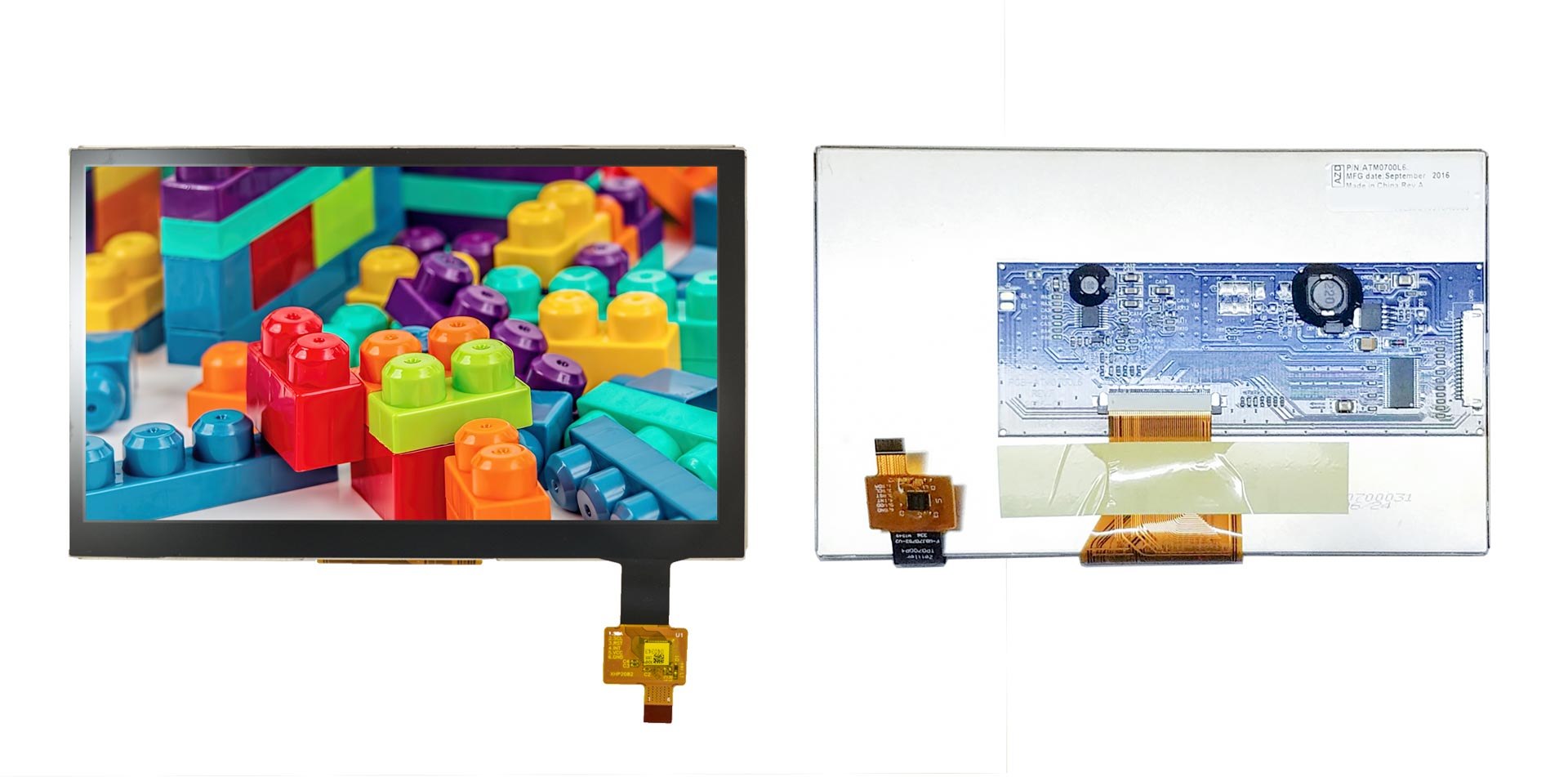

Product Picture:

Features

  • 800 x RGB x 480
  • Wide VGA Resolution
  • LED Backlight with 850 Nits Brightness
  • LVDS interface
  • RoHS Compliant
  • Built-in P-CAP Touch Panel

Module Specifications

Overall Module Size7"
Resolution800XR.G.B.X480
Brightness (Nits)850
Contrast500
Power Consumption2.64
Back LightLED
Viewing Angle+70/-70
+70/-50
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceLVDS
Active Area154.08X85.92 mm
Outline Dimension164.9X100.0X12.5 mm
Viewing Direction12 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
