ATM0700D38B-CT

Quicklinks:

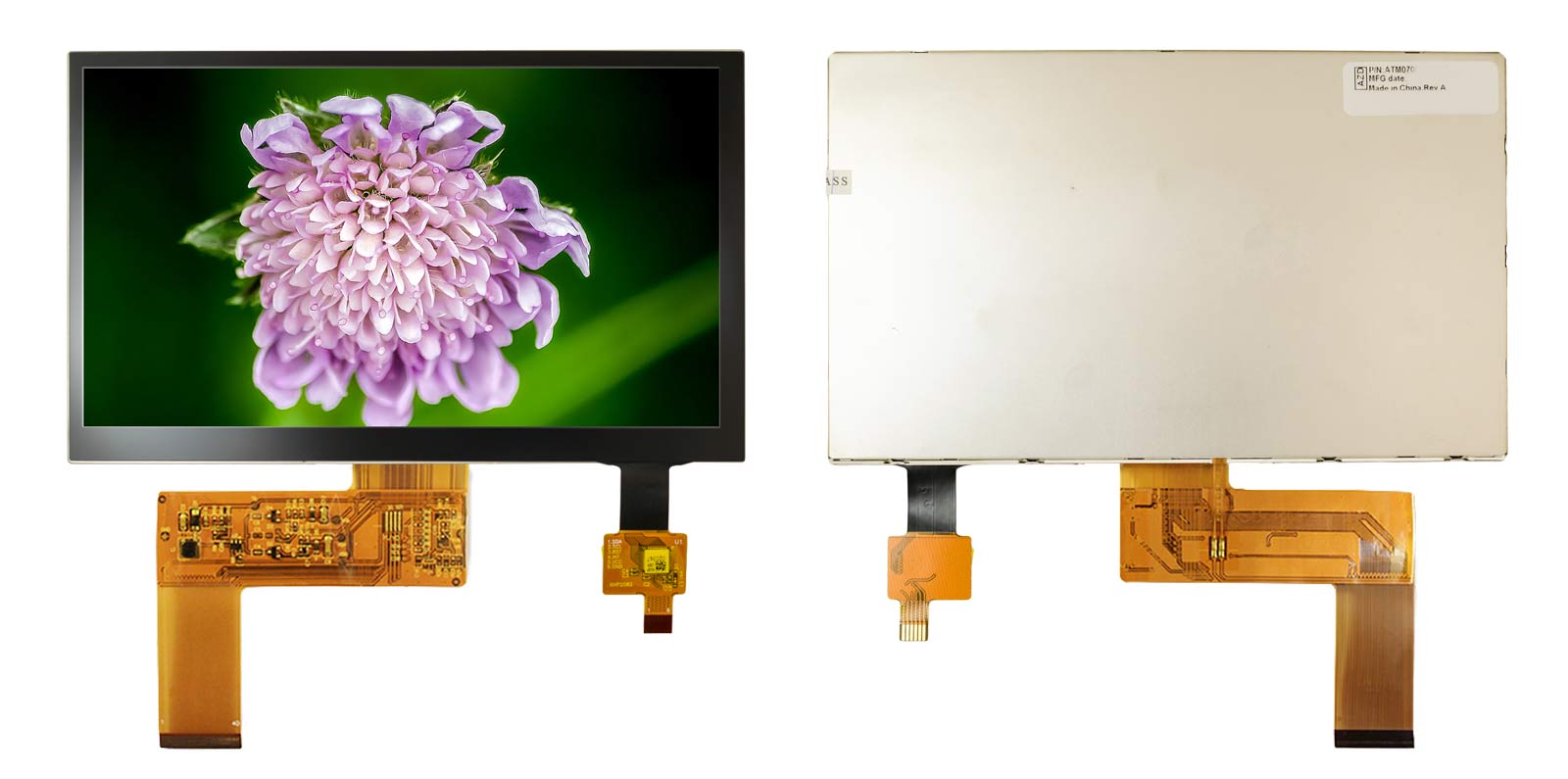

Product Picture:

Features

  • 800 x RGB x 480
  • 16M Colors
  • LED Backlight
  • Digital RGB interface
  • Built-in Capacitive Touch Panel

Module Specifications

Overall Module Size7"
Resolution800XR.G.B.X480
Brightness (Nits)590
Contrast500
Back LightLED
Viewing Angle+70/-70
+60/-50
Weight150g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area154.08X85.92mm
Viewing Area
Outline Dimension164.8X100.0X5.07 mm
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
