ATM0500D19-CT1

Quicklinks:

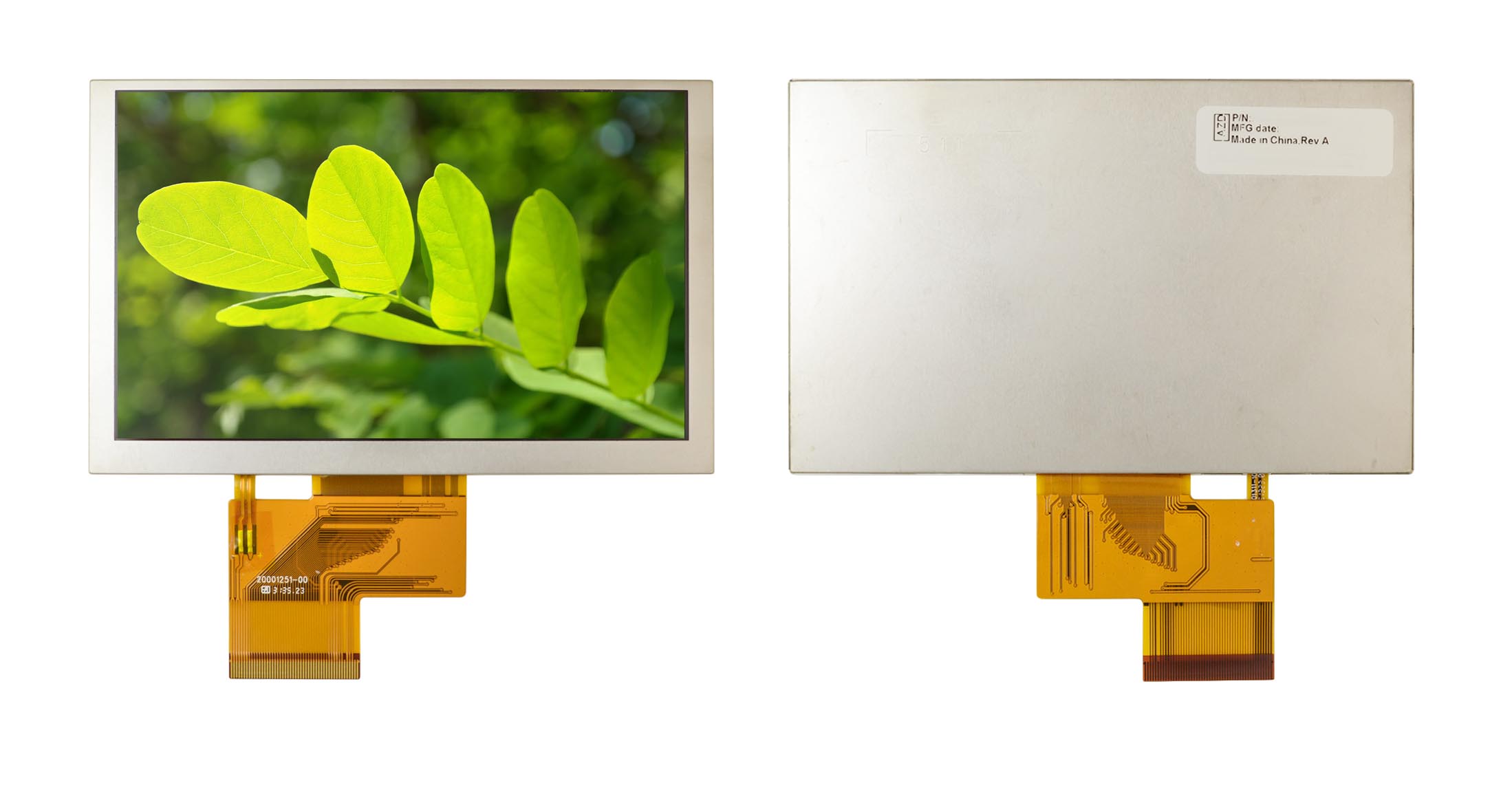

Product Picture:

Features

  • 800 X RGB X 480
  • 16M Colors
  • LED Backlight
  • Digital RGB Interface
  • Built-in Capacitive Touch Panel

Module Specifications

Overall Module Size5"
Resolution800XR.G.B.X480
Brightness (Nits)300
Contrast500
Back LightLED
Viewing Angle+70/-70
+70/-50
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area108.0X64.80mm
Outline Dimension120.7X75.8X4.25mm
Viewing Direction12 O'clock
Pixel ConfigurationStripe
